Unlocking the Secrets of the ZEISS Reverse Engineering Tool‑Correction Process: Insider Tips and Tricks

In high‑precision manufacturing, even a millimeter of deviation can cost time, money and product quality. ZEISS reverse engineering offers a systematic way to detect, analyze and correct tooling errors, turning potential headaches into predictable, repeatable solutions. Below is a practical guide that balances the obvious benefits with the real trade‑offs you’ll face on the shop floor.

Why Tool Correction Matters

Tool wear, machining inaccuracies, and material variations all contribute to dimensional drift. A well‑executed correction routine not only restores accuracy but also extends tool life and reduces scrap.

Key Indicators of Wear

• Increasing tolerances in finished parts
• Unexpected changes in cutting forces
• Visible flank wear or chipping
• Inconsistent surface roughness

How ZEISS Reverse Engineering Streamlines the Process

Unlike traditional trial‑and‑error methods, ZEISS reverse engineering captures a three‑dimensional model of the tool in its current state, compares it against the original CAD, and calculates the precise correction vector.

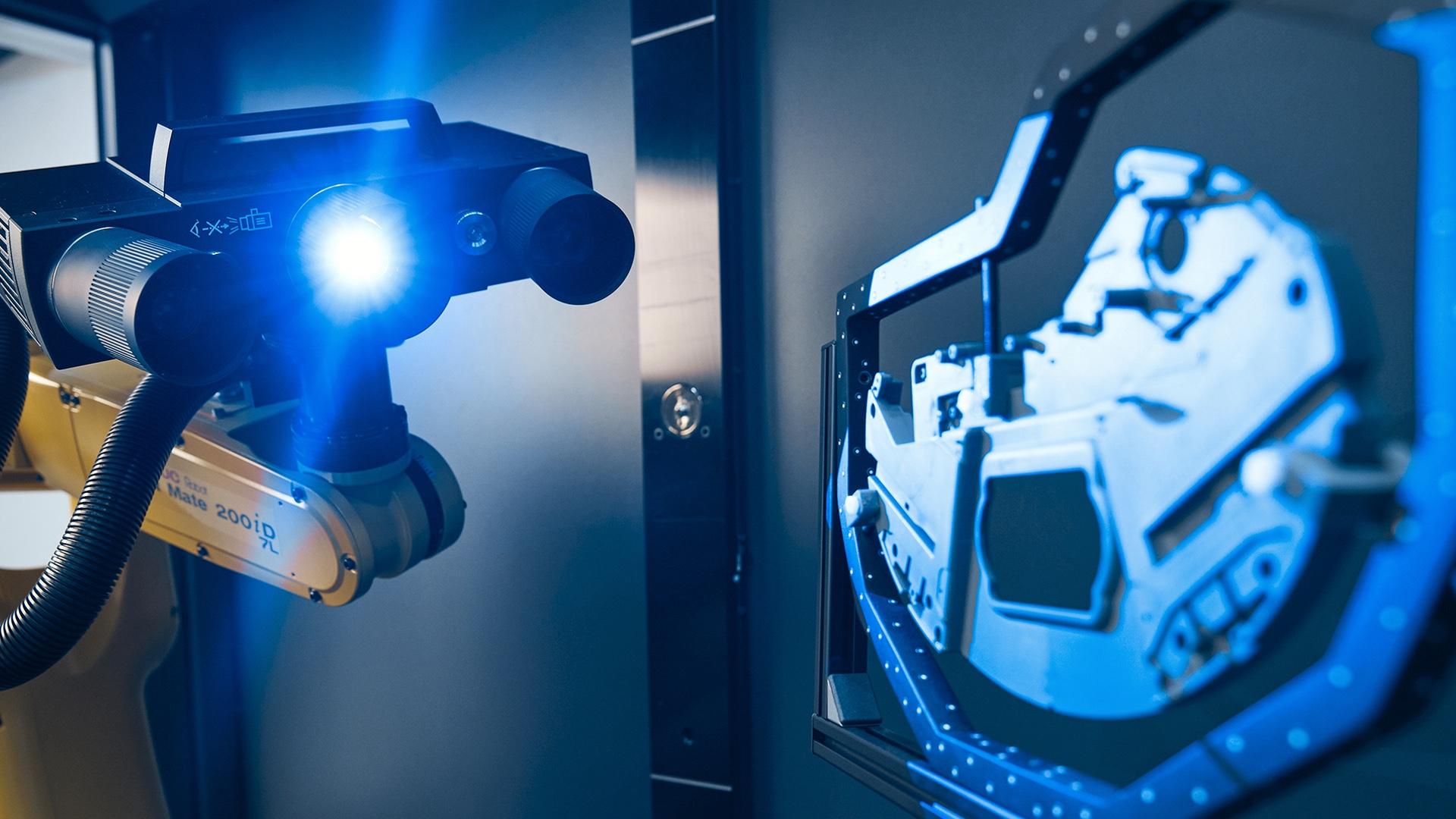

Workflow Highlights

1. Measurement – 3‑D scanning captures the tool’s geometry with micron‑level accuracy.
2. Analysis – Software aligns the scan to the CAD reference and flags deviations.
3. Correction Planning – A virtual “before” and “after” model shows the exact adjustments needed.
4. Implementation – Operators use the plan to adjust the tool or re‑machine the critical areas.

Benefits of Precise Tool Adjustment

• Reduced scrap rates – deviations shrink to sub‑tolerance levels.
• Extended tool life – only the worn surfaces are remade.
• Consistent part quality – tighter tolerances become standard, not exceptions.
• Data‑driven decision making – every correction is logged, enabling predictive maintenance.

Trade‑offs and Practical Limits

While the advantages are clear, a few realities temper the enthusiasm.

• Initial Cost – 3‑D scanners and specialized software require upfront investment.
• Learning Curve – Operators need training to interpret scans and apply corrections
